Introduction:
The world of advanced optics is constantly evolving, driven by the demand for materials that offer superior performance in increasingly challenging environments. For applications in the infrared spectrum, Zinc Sulfide (ZnS) stands out as a material of choice due to its excellent transmission properties and remarkable durability. However, the manufacturing of large-size optical grade ZnS sheets presents unique challenges that only a few specialized manufacturers can overcome. At Most Optics, we’ve perfected the art and science of producing these critical components, capable of manufacturing sheets up to an impressive 200x200x15 cm, enabling breakthroughs in various high-tech sectors.
Why Large-Size Optical Grade ZnS?
The need for larger optical components is growing, particularly in applications requiring wider fields of view, higher resolution, or more robust protective elements. Traditional optical materials often struggle to meet these demands without compromising performance or structural integrity.
Optical Grade Zinc Sulfide (ZnS) offers a compelling solution:
- Broadband Transmission: ZnS transmits efficiently across a wide range of the infrared spectrum (from visible to ~12 µm), making it ideal for multispectral applications. This includes both the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands, crucial for thermal imaging and sensing.
- Exceptional Durability: Known for its high hardness and resistance to harsh environments, ZnS is an excellent choice for protective windows and domes in demanding applications. Its robustness ensures longevity and reliability in the field.
- “Clear” (Multispectral) ZnS: Advancements in manufacturing have led to “Clear” ZnS (often referred to as Multispectral ZnS), which offers improved transmission in the visible spectrum while retaining its outstanding infrared properties. This makes it suitable for systems requiring both visible and IR capabilities, such as advanced FLIR (Forward-Looking Infrared) systems.
The Manufacturing Challenge of Large ZnS Sheets:
Producing large optical grade ZnS sheets is not a trivial task. It requires:
- Precise Material Synthesis: Achieving the high purity necessary for optical grade ZnS involves stringent control over raw materials and the chemical vapor deposition (CVD) process. Impurities can severely degrade optical performance.
- Controlled Growth Processes: Growing large, uniform boules or sheets of ZnS without internal defects (like voids, inclusions, or grain boundary issues) demands sophisticated equipment and extensive expertise. Temperature gradients, pressure, and gas flow must be meticulously controlled.
- Advanced Shaping and Polishing: Once the material is grown, shaping it into large ZnS sheets of precise dimensions and achieving an optical quality surface finish requires specialized cutting, grinding, and polishing techniques. Any imperfections can lead to scattering or distortion.
- Quality Assurance: Rigorous testing is essential to verify the optical properties (transmission, refractive index uniformity), mechanical properties (hardness, flexural strength), and dimensional accuracy of each large ZnS sheet.
Most Optic’s Expertise in Large ZnS Manufacturing:
At Most Optics, we pride ourselves on our state-of-the-art manufacturing facilities and a team of experts dedicated to pushing the boundaries of optical material production. Our capabilities in producing large-size optical grade ZnS sheets include:
- Proprietary CVD Processes: Our refined Chemical Vapor Deposition methods allow us to synthesize high-purity, uniform ZnS materials with excellent optical characteristics.

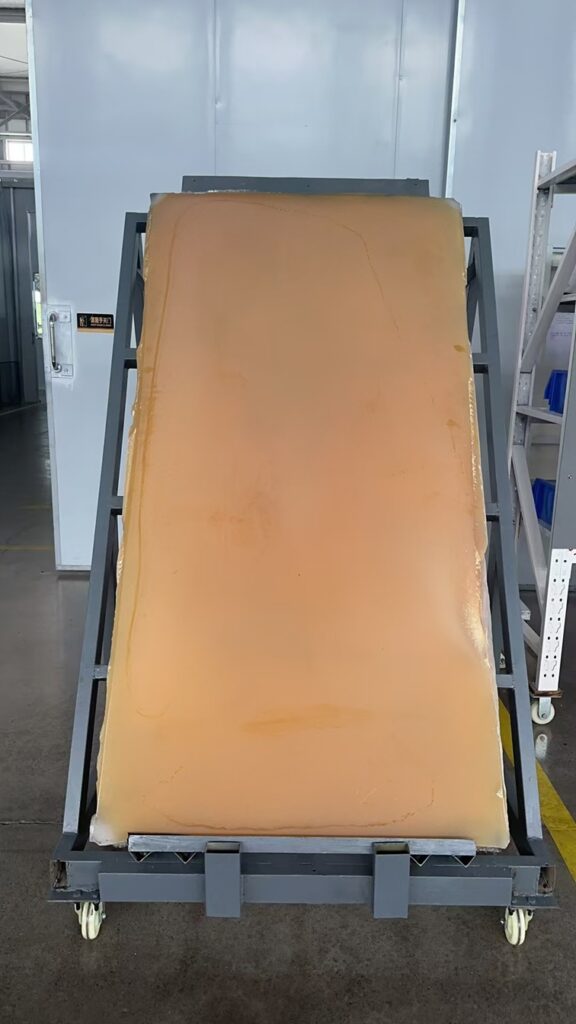

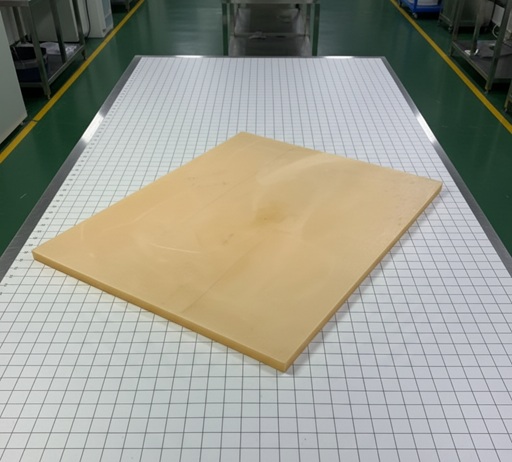

- Expanded Manufacturing Capacity: We specialize in producing truly large-format ZnS sheets, with capabilities reaching up to 200x200x15 cm. This allows for significantly larger optical components, reducing the need for tiling and improving system performance.
- Precision Fabrication: We utilize advanced CNC machining and optical polishing techniques to create large ZnS sheets with tight dimensional tolerances and superior surface quality.
- Comprehensive Quality Control: Every large ZnS sheet undergoes a battery of tests, including IR spectrophotometry, interferometry, and environmental testing, to ensure it meets the most stringent specifications.
- Custom Solutions: We work closely with our clients to understand their specific application requirements, providing tailored large ZnS sheet solutions that integrate seamlessly into their systems.
Applications Benefiting from Large Optical Grade ZnS Sheets:
The ability to produce large optical grade ZnS sheets opens up new possibilities for:
- Advanced FLIR Systems: Enabling larger aperture windows for enhanced thermal imaging in aerospace and defense.
- Multispectral Imaging: Providing robust windows for cameras that operate across multiple wavelengths.
- Industrial Process Monitoring: Durable windows for high-temperature or corrosive environments.
- Scientific Research: Large-scale components for spectroscopy and laser applications.
- Space Optics: Resilient windows for satellite and space-borne instrumentation.
Conclusion:
The manufacturing of large-size optical grade Zinc Sulfide (ZnS) sheets represents a significant achievement in optical material science. It empowers engineers and researchers to design and deploy next-generation optical systems with unparalleled performance and durability. As demand for advanced infrared optics continues to grow, Most Optics remains at the forefront, delivering the high-quality, large-format ZnS solutions that drive innovation.
Contact us today to discuss your specific requirements for large optical grade ZnS sheets.
